5 Rupee Juice Packet machine
- Description/ Quotation
- Product Info
- Price
- Estimated Dispatch Time
- Product Video

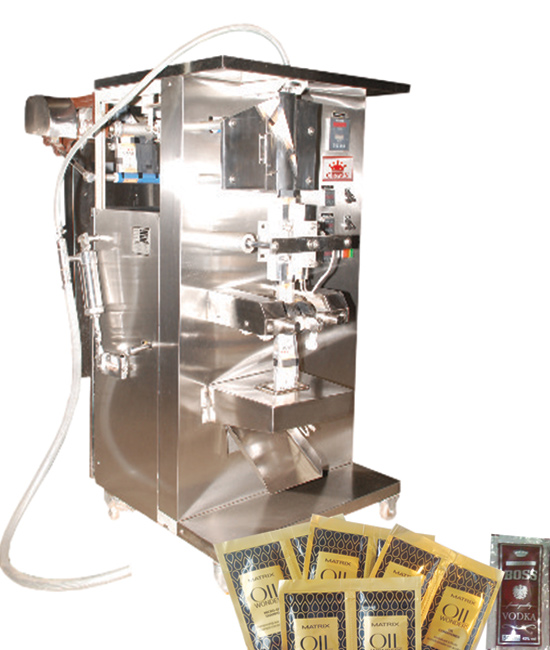

Cost to the supply “Automatic form fill & seal” Machine (Mechanical) Model No: CR-S4-100 To pack Juices etc in heat sealable laminated pouches with volumetric pump operated filling system, all contact parts, made out of SS 304 grade stainless steel, the machine is movable with break wheels. Machines provided with adjustable sealing temperature of 250 degrees C. & adjustable pressure for different thickness poly films.
| Feeding head : | Volumetric Pump Operated Filling System |
| Packing Range : | 30 – 100 ml |
| Production Speed : | 40-50 pouches per min (Depends Product) |
| Machine control system : | Electronic Controls |
| Film Width : | up to 210 mm. Approx |
| Film Thickness : | 40 to 80 microns |
| Film Material : | Laminated Film |
| Sealer heating system : | PID Controlled |
| Filling Accuracy : | +/- 1% (Depends on product) |
| Inner Core Dia. of Film Roll : | 70mm |
| Outer Dia. of the film Roll : | up to 350mm |
| Pouch Style : | Three side / four side sealing |
| Pouch Width : | up to 100 mm |
| Pouch Length : | up to 165 mm |
| Compressed Air pressure : | N/A |
| Air consumption : | N/A |
| Power Consumption : | 1kW / Hour |
| Peak Power : | 3 kW |
| Power requirement : | Single Phase, 220 V, 50Hz |
| Film Guard mechanism : | N/A |
| Pouch Counter : | Provided |
| Date printing Device : | Optional |
| Photo Cell : | Provided |
| Machine Dimensions in ‘mm’ : | 1500(H) x 450(W) x 450(Depth) |
| Net Weight : | 360 kg’s (approx) |
-
Approx : 2,00,000.00 INR
Delivery Time : 1-2 weeks from the date of receipt of you’re confirm order and along with requisite advances
